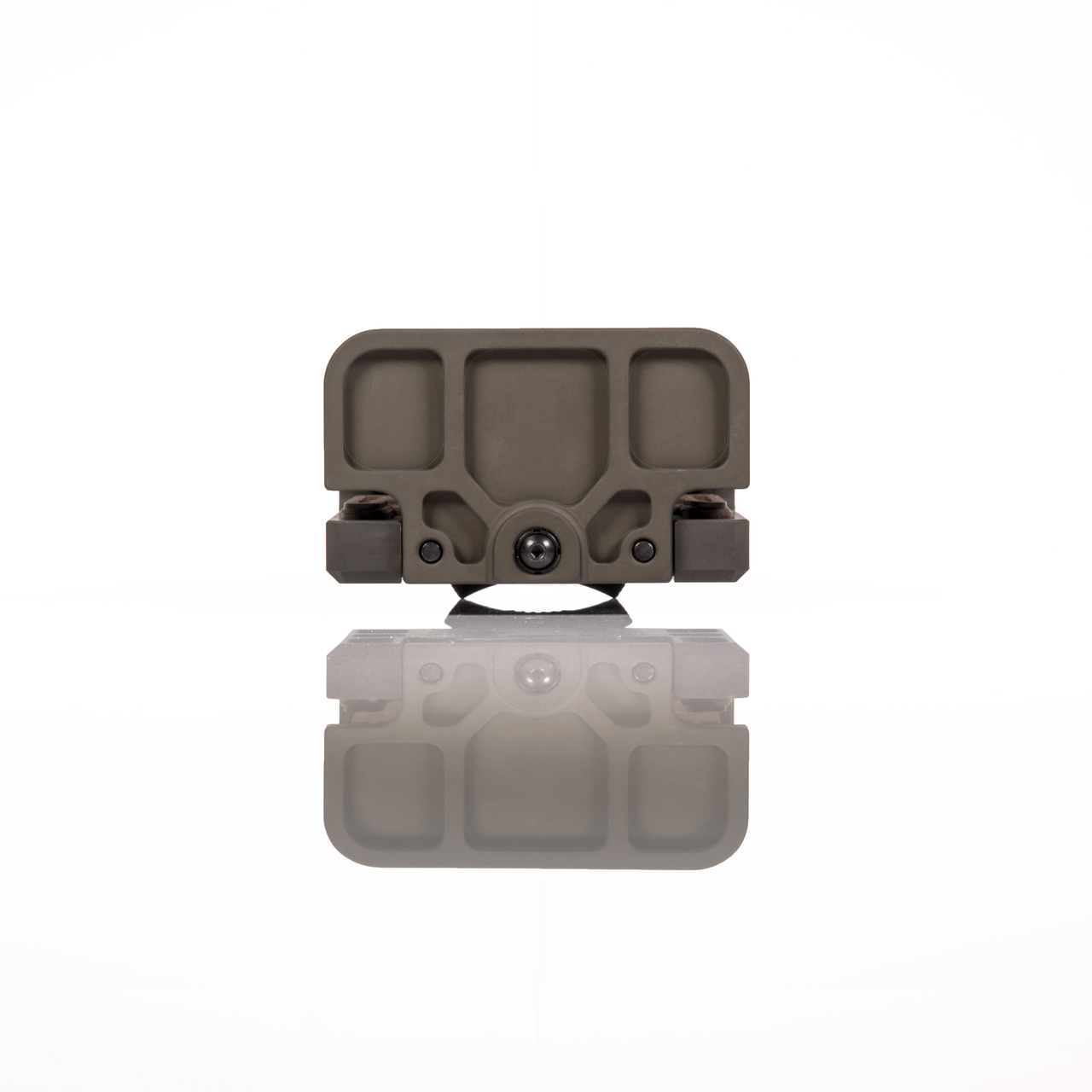

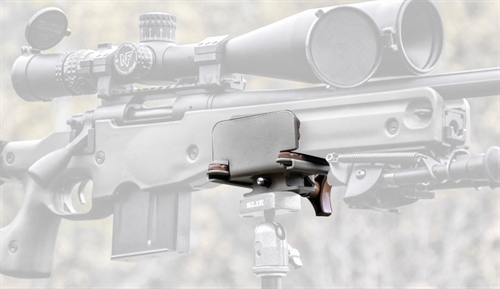

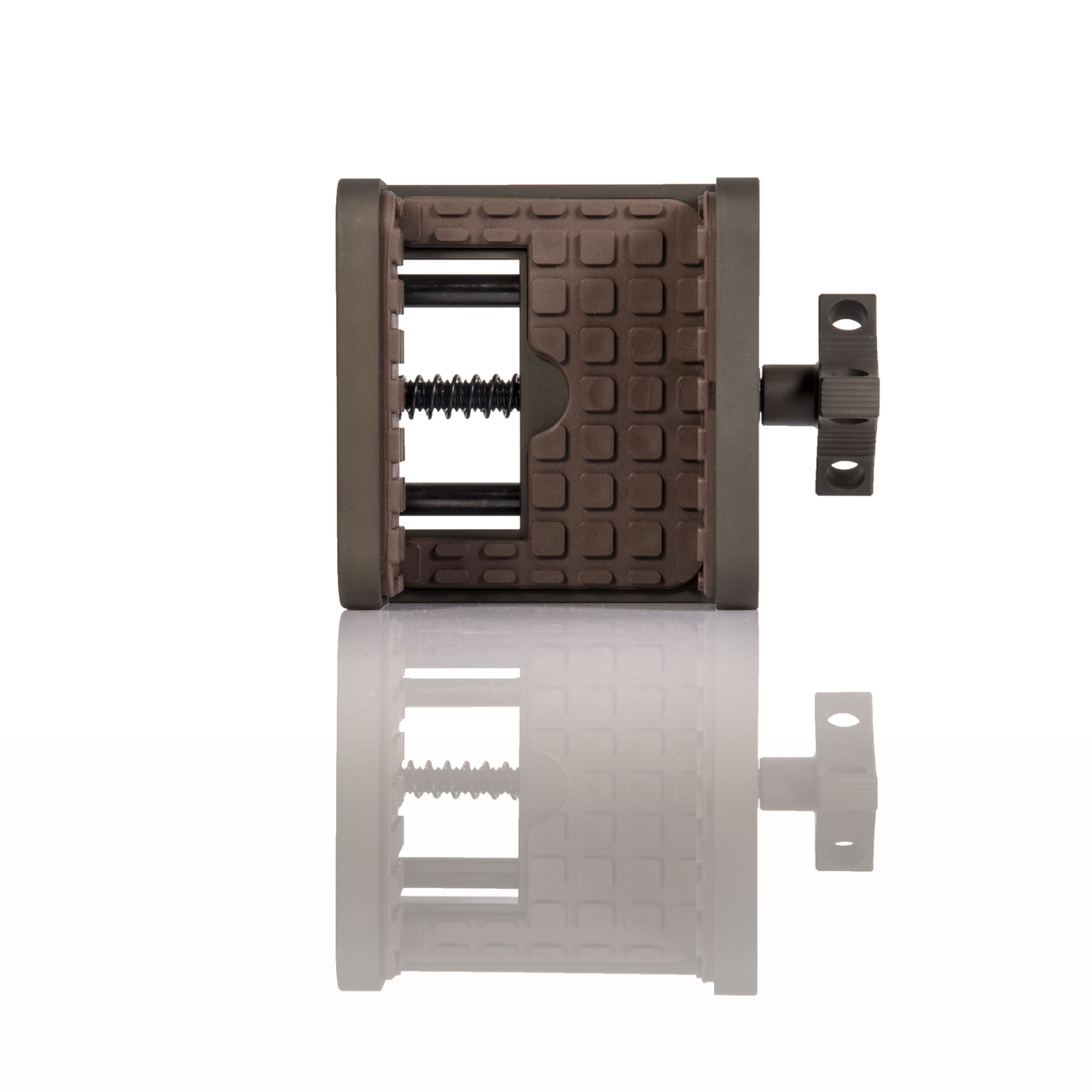

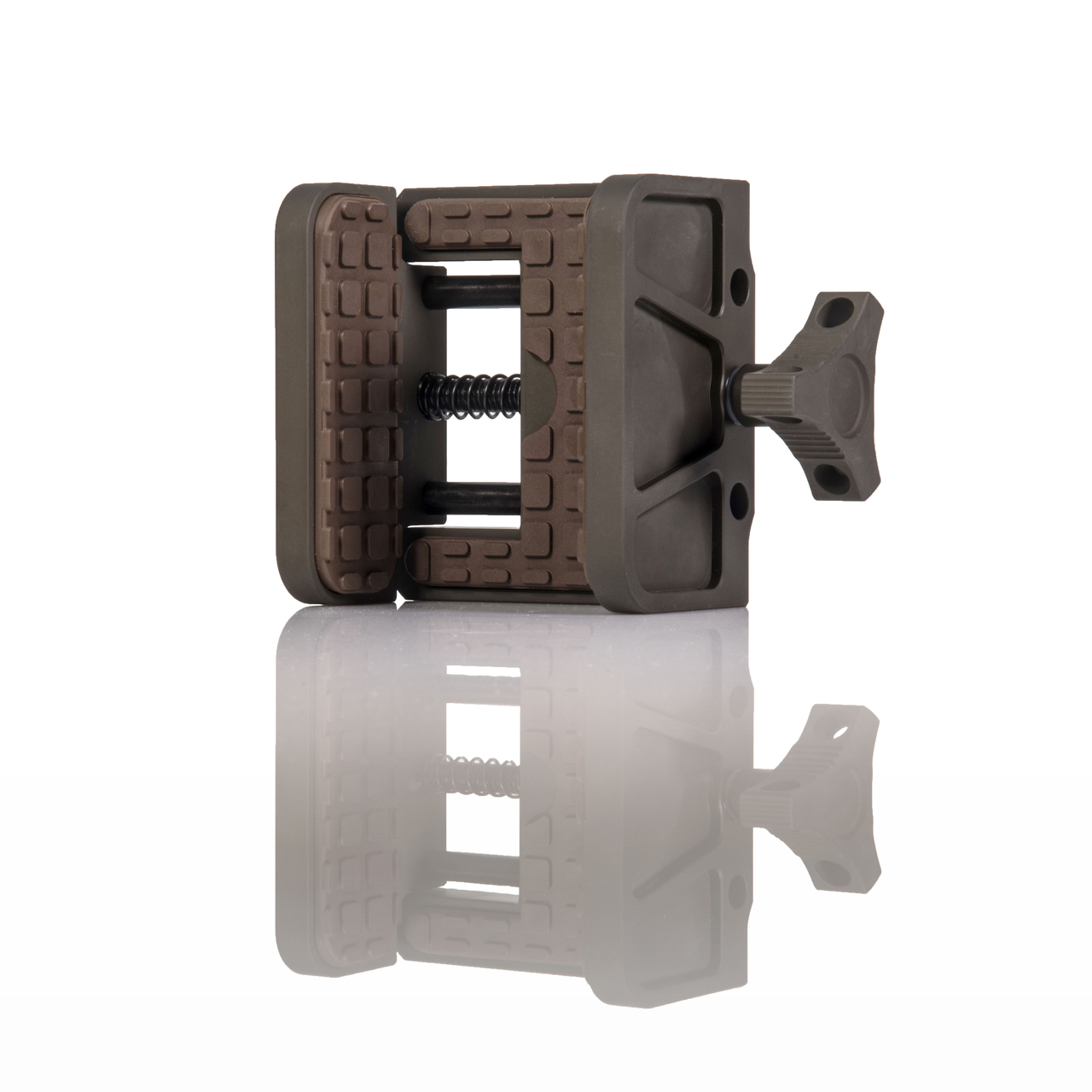

MOD7 HOG Saddle

This is our latest model HOG Saddle with some improvements from the original design. The MOD7 is currently a standard issue item in the US Marine Corps and other various Special Opperations Units.

List of improvements:

1. Opens 1/4″ wider than original model.   (2 11/16″ Open, 1 1/2″ Closed)
2. Incorporates a retention button screw to prevent unintentional dissassembly in the field
3. Weighs less than 16 ounces

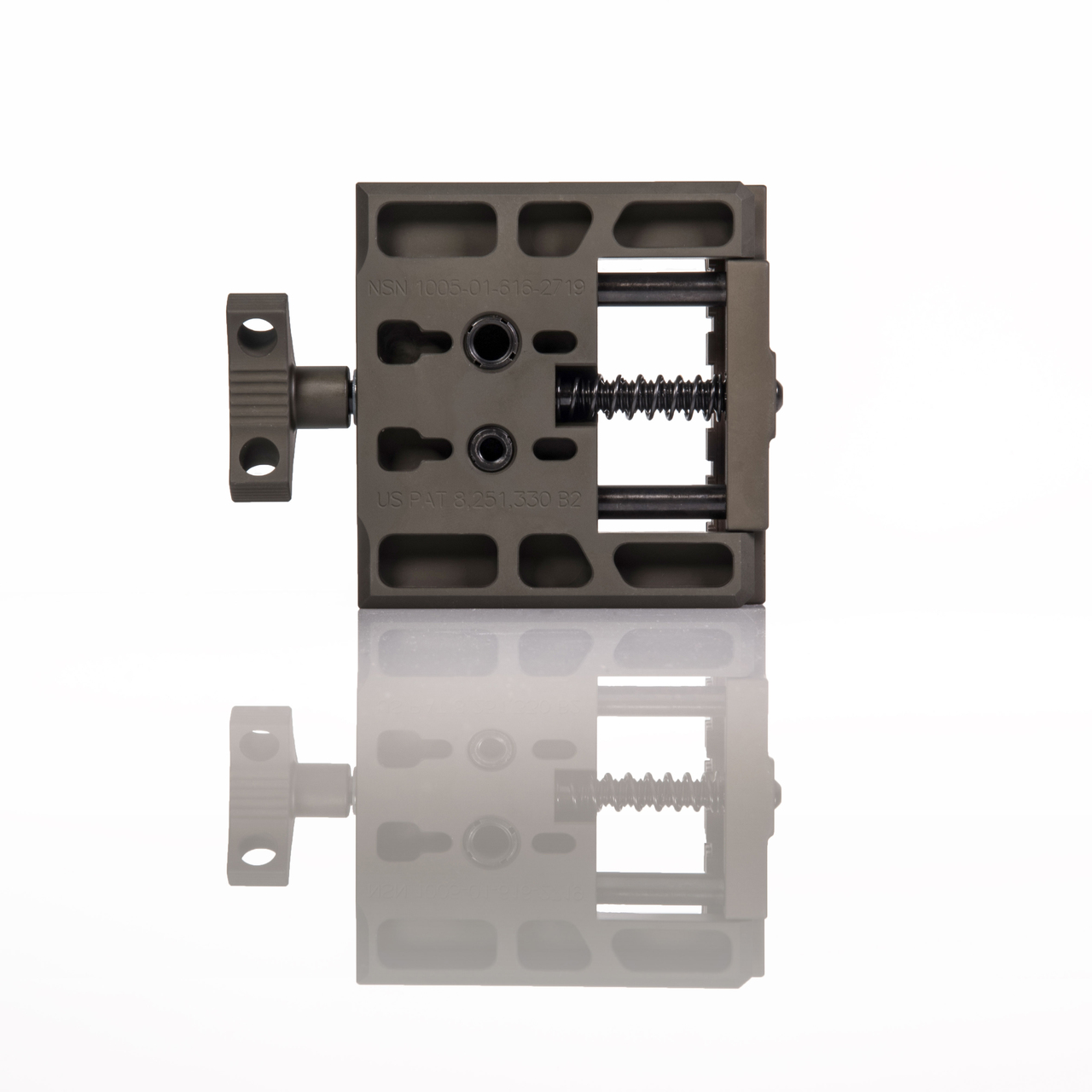

4. Added cut-outs to the base of the HOG Saddle. These narrow slots better integrate with tripod heads or QR plates that have anti-rotation video pins.

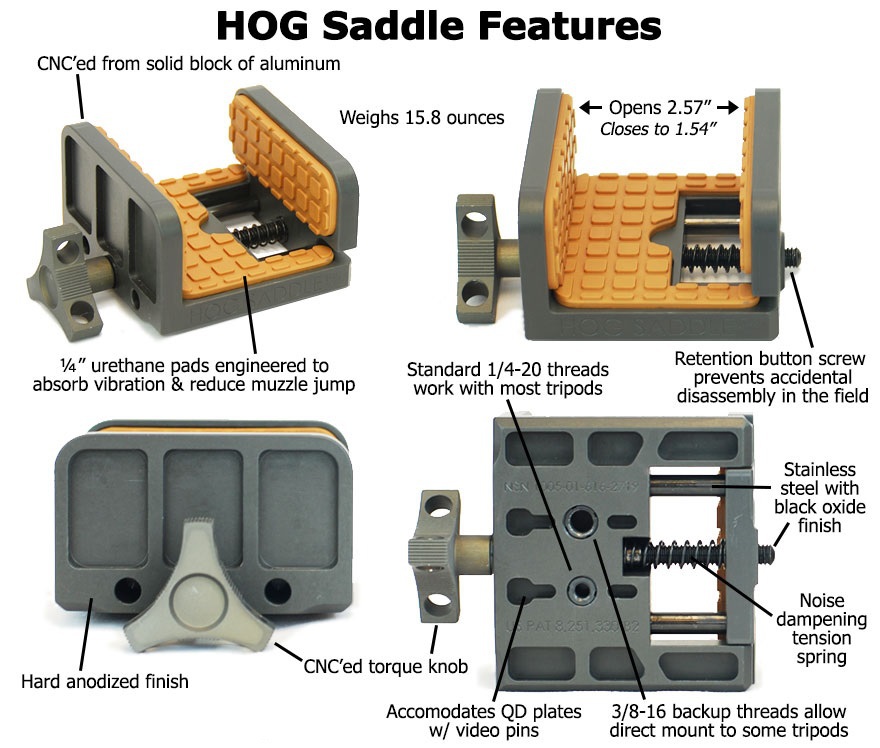

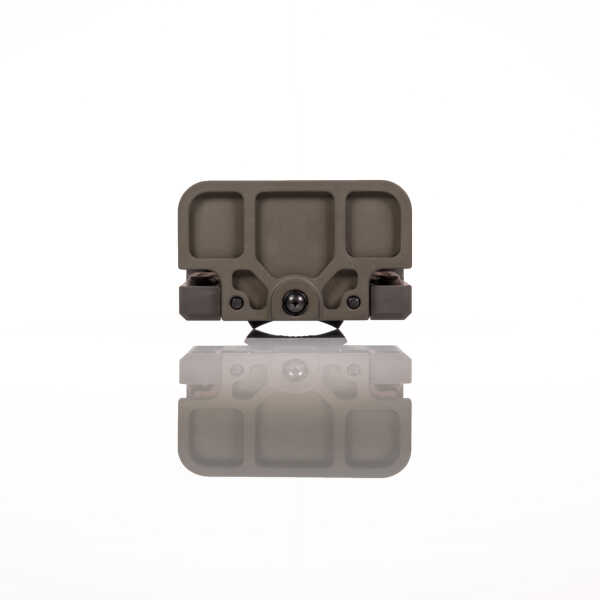

MOD7 HOG Saddle Specs:

• • CNC machined from a solid block of aluminum

• • Black oxide stainless steel bolt and guide rods

• • Hard anodized finish (a resilient surface which serves as an excellent base coat for custom camouflage paint)

• • 1/4-20 stainless steel mounting threads and 3/8-16 back up threads

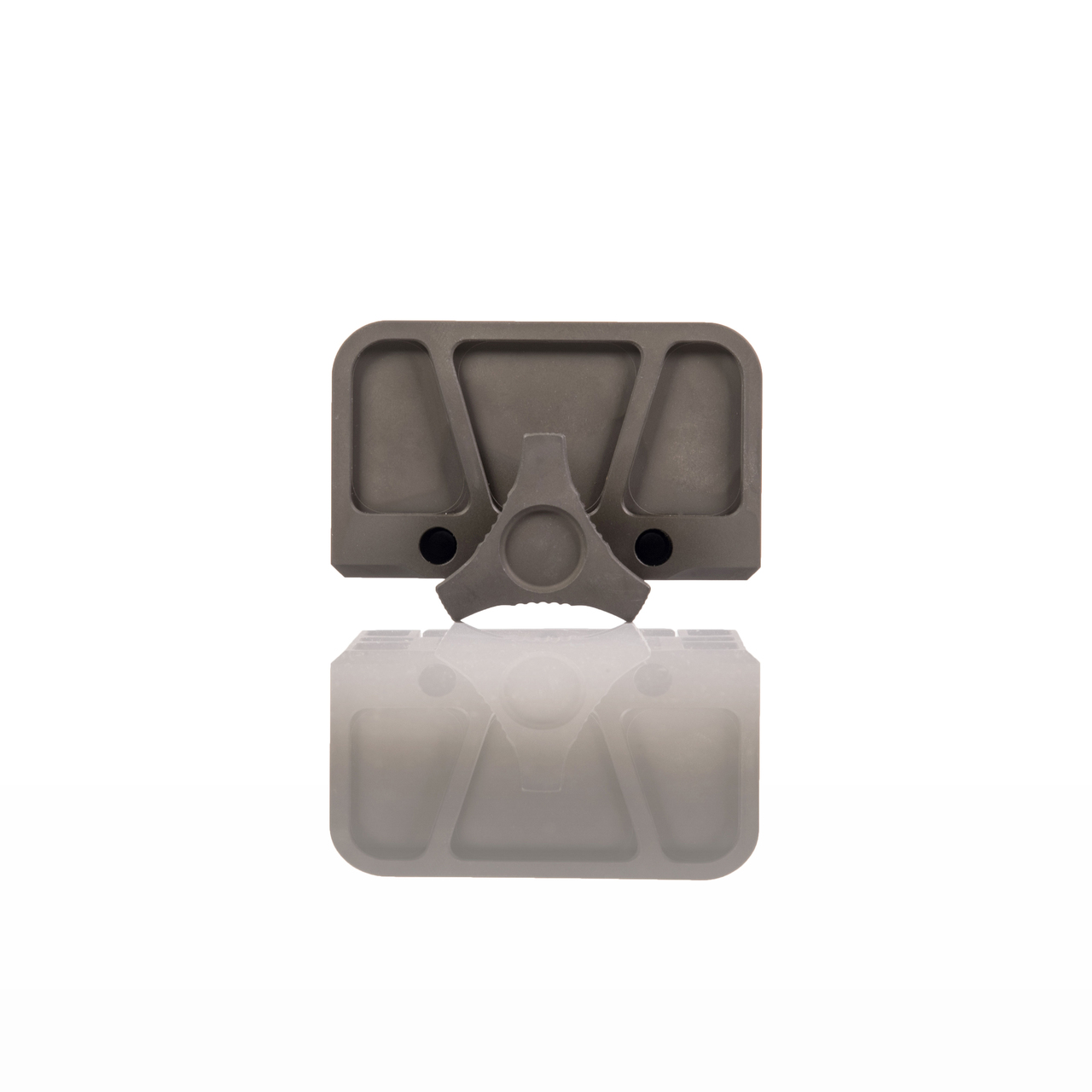

• • CNC machined torque knob assembly with retention button screw to prevent disassembly in the field (opens 1/4in wider than previous model)

• • Stainless steel noise dampening tension spring

• • 1/4 inch thick, recessed urethane pads specifically engineered to absorb rifle recoil and reduce muzzle jump

• • Anti-rotation slots to accept tripod QD plates that have video pins

• • Superior resistance to corrosion

• • Weight: 15.8oz (~448 grams)
